Access, Reimagined

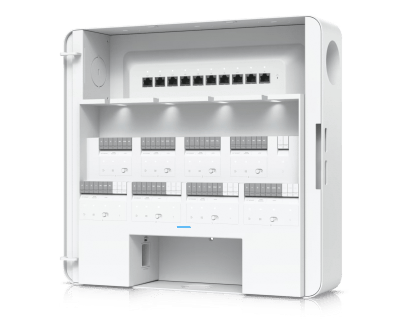

Enterprise Access Hub
Entry and exit control for up to eight readers and doors, with battery backup support

Door Hub
Entry and exit control for a single door

Door Hub Mini
Compact Access Control Hub for a single door

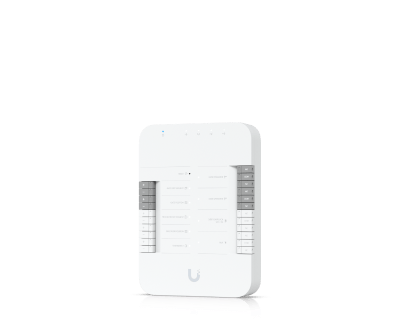

Gate Hub
Authorize gate access with License Plate Unlock

Elevator Hub
Authorized entry to up to 18 floors using an in-elevator reader

Retrofit Hub
Keeping your legacy door readers

Access Ultra
Integrated hub and reader for single-door entry control

Entry and exit control for up to eight readers and doors, with battery backup support

Entry and exit control for a single door

Compact Access Control Hub for a single door
Select from Above
Select from Above
Dimensions
Dimensions
379 x 355 x 105 mm
(15 x 14 x 4.1")
Dimensions
174.9 x 126 x 32.9 mm
(6.9 x 5 x 1.3")
Dimensions
113 x 66 x 27.6 mm
(4.4 x 2.6 x 1.1")
Dimensions
Output Relays
Output Relays
(8) Lock terminals (12V and dry)
(4) AUX for chimes, sirens, or door openers
Output Relays
(2) Lock terminals (12V and dry)
(1) AUX for door operator (dry)
(1) AUX for siren/chime (12V)
Output Relays
(1) Lock terminal (12V and dry)
Output Relays
Input Terminals
Input Terminals
(8) Request to exit
(8) Door position sensor
(1) Emergency
Input Terminals
(1) Motion sensor
(1) Exit button
(1) Door position sensor
(1) Emergency
Input Terminals
(1) Request to exit
(1) Door position sensor
Input Terminals
PoE Ports
PoE Ports
(8) PoE for access readers
and cameras
PoE Ports
(4) PoE for access readers and cameras
PoE Ports
(2) PoE for access readers and cameras
PoE Ports
Power Method
Power Method
AC Power
Power Method
PoE++
Power Method
PoE++
Power Method
Power Redundancy
Power Redundancy
(1) Battery backup input
(32-48V DC)
Power Redundancy
Power Redundancy
Power Redundancy
