UniFi Flexibility for MSPs

Gateway Enterprise
Multi-WAN gateway with 25 Gbps performance for enterprise‑scale networks
Gateway Pro
Multi-WAN gateway designed to protect medium to large-sized networks
Gateway Fiber
Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
New
Gateway Max
Compact, multi-WAN gateway for high-speed networking at small-to-medium sites
Gateway Lite
Compact and powerful gateway ideal for smaller networks
Dimensions
442.4 x 43.7 x 325 mm
(17.4 x 1.7 x 12.8")
442.4 x 43.7 x 285.6 mm
(17.4 x 1.7 x 11.2")
212.8 x 127.6 x 30 mm
(8.4 x 5 x 1.2")
141.8 x 127.6 x 30 mm
(5.6 x 5 x 1.2")
98 x 98 x 30 mm
(3.9 x 3.9 x 1.2")
Throughput
25 Gbps
10 Gbps
10 Gbps
2.5 Gbps
1 Gbps
IDS/IPS Throughput
12.5 Gbps
3.5 Gbps
5 Gbps
1.5 Gbps
1 Gbps
License-Free NeXT AI SSL Inspection
WAN Ports
(1) 25G SFP28
(1) 2.5 GbE RJ45
(1) 10G SFP+
(1) GbE RJ45
(1) 10G SFP+
(1) 10 GbE RJ45
(1) 2.5 GbE RJ45
(1) GbE RJ45
LAN Ports
(1) 25G SFP28
(2) 10G SFP+
(1) 2.5 GbE RJ45
(1) 10G SFP+
(1) GbE RJ45
(1) 10G SFP+
(4) 2.5 GbE RJ45
(4) 2.5 GbE RJ45 including (1) remappable to WAN
(1) GbE RJ45
Power Redundancy
Dual hot-swappable PSUs
With UniFi Power Backup
Form Factor
Rack
Rack
Desktop
Desktop
Desktop
All networking interfaces are LAN/WAN remappable.
*When managed with a CloudKey Enterprise or Official UniFi Hosting.

Gateway Enterprise

Capacity

Concurrent Sessions

1 million

New Sessions / Sec

71,000

SSL/TLS Inspection Concurrent Sessions

10,000*

IDS/IPS Signatures

80,000+**

*Limiting to 5,000 concurrent sessions is recommended if the gateway is passing significant traffic. This can be achieved by restricting which VLANs and domains pass through NeXT AI Inspection, such as only including search engine and LLM queries on employee devices. Learn More.

**With Enhanced Threat Updates. Learn More.

Routing Throughput*

Firewall

23.5 Gbps

IDS/IPS

12.5 Gbps

*Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation.

VPN Server Single User Throughput*

UniFi Identity

1.2 Gbps

Teleport

1.2 Gbps

WireGuard

1.2 Gbps

OpenVPN

210 Mbps

L2TP

280 Mbps

*Measured with iPerf3.

Site-to-Site VPN Single Tunnel Throughput*

Site Magic

1.1 Gbps

OpenVPN

120 Mbps

IPsec

580 Mbps

*Measured with iPerf3.

VPN Client Single Tunnel Throughput*

WireGuard

980 Mbps

OpenVPN

180 Mbps

*Measured with iPerf3.

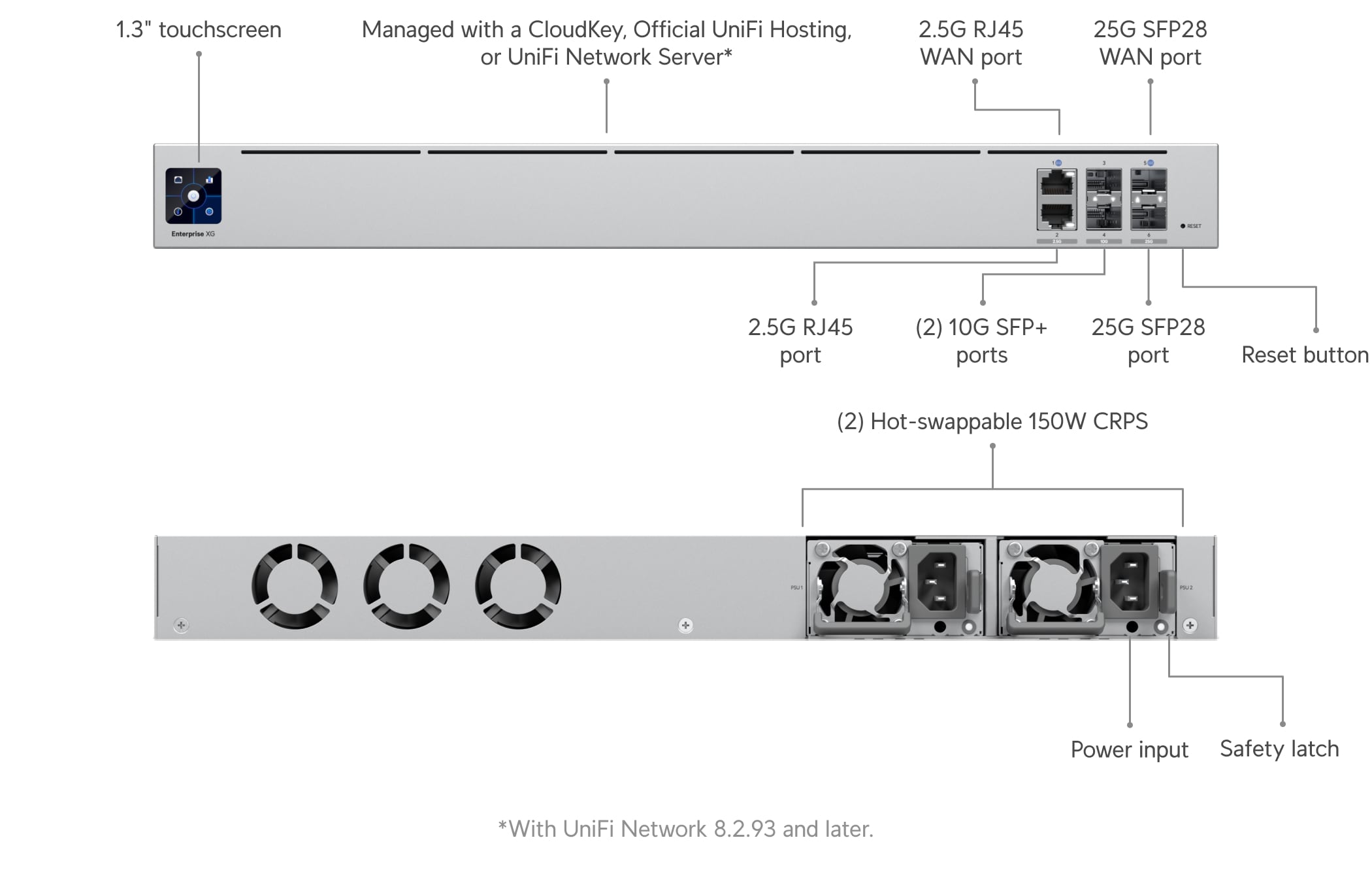

Gateway Enterprise

25G independent gateway with multi-WAN load balancing, 12.5 Gbps IPS routing, and redundant hot-swap PSUs.

Gateway Enterprise

Overview

Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server with UniFi Network 8.3.32 and later
12.5 Gbps routing with IDS/IPS
License-free, real-time inspection of encrypted packets with NeXT AI Inspection* (SSL/TLS decryption)
(2) 25G SFP28, (2) 10G SFP+, and (2) 2.5 GbE RJ45 ports (two interfaces remappable to WAN)
(2) included hot-swap PSUs for power redundancy

*Must be managed with a CloudKey Enterprise or Official UniFi Hosting.

Performance

Capacity

Concurrent Sessions

1 million

New Sessions / Sec

71,000

SSL/TLS Inspection Concurrent Sessions

10,000*

IDS/IPS Signatures

80,000+**

*Limiting to 5,000 concurrent sessions is recommended if the gateway is passing significant traffic. This can be achieved by restricting which VLANs and domains pass through NeXT AI Inspection, such as only including search engine and LLM queries on employee devices. Learn More.

**With Enhanced Threat Updates. Learn More.

Routing Throughput*

Firewall

23.5 Gbps

IDS/IPS

12.5 Gbps

*Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation.

VPN Server Single User Throughput*

UniFi Identity

1.2 Gbps

Teleport

1.2 Gbps

WireGuard

1.2 Gbps

OpenVPN

210 Mbps

L2TP

280 Mbps

*Measured with iPerf3.

Site-to-Site VPN Single Tunnel Throughput*

Site Magic

1.1 Gbps

OpenVPN

120 Mbps

IPsec

580 Mbps

*Measured with iPerf3.

VPN Client Single Tunnel Throughput*

WireGuard

980 Mbps

OpenVPN

180 Mbps

*Measured with iPerf3.
